| Ambient air temperature for storage | -25...70 °C |
| Analogue I/O processor capacity | 24 I/O |
| Anbefalede temperatur ved betjening | 0...60 °C |
| Antal digitale I/O pr. CPU | 512 I/O |
| Antal modulpladser | <= 32 |
| Antal racks | 4 4/6/8 slots 2 12 slots |
| Antal specifikke kanaler | <= 8 |
| Applikationsstruktur | 1 fast task 1 master task 32 event tasks |
| Beskyttelsesbehandling | TC |
| Communication module processor | 1 CANopen 2 AS-Interface bus modul 1 netværks modul |
| Driftshøjde | 0...2000 m |
| EAN-nummer | 3595862023825 |
| Forureningsgrad | 2 |
| Gennemføringstid pr. instruktion | 44 µs florerende punkt without PCMCIA card 44 µs florerende punkt with PCMCIA card 0.87 µs ord eller fastpunkt aritmetik with PCMCIA card 0.62 µs ord eller fastpunkt aritmetik without PCMCIA card 0.6 µs Boolean with PCMCIA card 0.5 µs Boolean without PCMC |
| Hukommelsesbeskrivelse | PCMCIA card 64 Kord program PCMCIA card 128 Kord additional data storage Internal RAM (without PCMCIA card) 32 Kord program and data Internal RAM (with PCMCIA card) 32 Kord data |
| Integreret forbindelse | Non isolated serial link 2 female mini DIN 19.2 kbit/s |
| IP kapslingsklasse | 18-22 |
| Kommerciel status | Commercialised |
| Lagerkode | På lager |
| Lokal indikering | 1 LED gul activity on the terminal port (TER) 1 LED rød processor or system fault (ERR) 1 LED rød I/O module or configuration fault (I/O) 1 LED grøn processor running (RUN) |
| Maximum size of object areas | 4096 %Mi located internal bits 32 %KWi constant words located internal data 30.5 %MWi internal words located internal data |
| Modulformat | Standard |
| Mærkning | CE |
| Number of instructions per ms | 1.52 Kinst/ms 100 % Boolean without PCMCIA card 1.18 Kinst/ms 100 % Boolean with PCMCIA card 1.05 Kinst/ms 65 % Boolean + 35 % fixed arithmetic without PCMCIA card 0.85 Kinst/ms 65 % Boolean + 35 % fixed arithmetic with PCMCIA card |
| Overhead | 1.5 ms master task 0.8 ms fast task |
| Product end of life instructions | Need no specific recycling operations |
| Productcertificeringer | ABS BV DNV GL LR RINA RMRS |

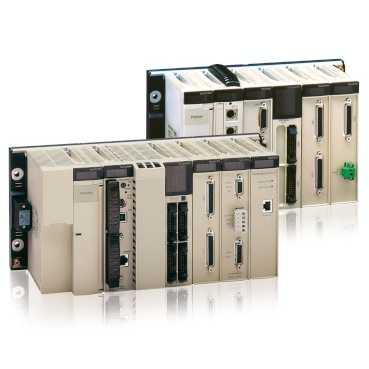

| Produktsortiment | Modicon Premium Automation platform |
| Produkttype | Single-format PL7 processor |
| REACh | Reference contains SVHC above the threshold - Go to CaP for more details |
| Relativ fugtighed | 5...95 % without condensation for storage 10...95 % without condensation for operation |
| RoHS (date code: YYWW) | Compliant - since 0933 - Schneider Electric declaration of conformity |
| Software udpegning | PL7 Junior/Pro |
| Strømforbrug | 440 mA 5 V DC |
| Sustainable offer status | Ikke Green Premium produkt |
| Vægt | 0.38 kg |
| Standarder | 73/23/EEC 89/336/EEC 92/31/EEC 93/68/EEC CSA C22.2 No 142 IEC 61131-2 UL 508 CSA C22.2 No 213 Class I Division 2 Group A CSA C22.2 No 213 Class I Division 2 Group B CSA C22.2 No 213 Class I Division 2 Group C CSA C22.2 No 213 Class I Division 2 Group D |
