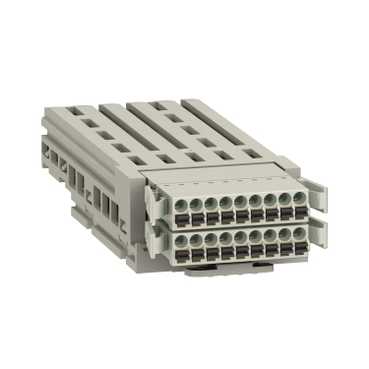

I/O udvidelseskort 6 indgange 2 udgange 2 analog ind


Analogue input number	2
Analogue input type	AI1, AI2 configurable PTC, Pt 100, Pt 1000, sampling time: <= 1 ms, resolution: 14 bits AI1, AI2 configurable voltage : - 10...10 V DC, 24 V max, impedance: 20 kOhm, sampling time: <= 1 ms, resolution: 14 bits AI1, AI2 configurable current : 0...20 mA/4..
Discrete input current	2.5 mA
Discrete input logic	(DI11...DI16) positive (DI11...DI16) negative
Discrete input number	6
Discrete input type	(DI11...DI16) programmable, , impedance: 250 Ohm, sampling time: <= 1 ms
Discrete input voltage	24 V DC (voltage limits:<= 30 V) for programmable
Discrete output logic	(DQ11, DQ12) positive (DQ11, DQ12) negative
Discrete output number	2
Discrete output type	(DQ11, DQ12) assignable logic, sampling time: <= 1 ms
Discrete output voltage	24 V DC (voltage limits:<= 30 V) assignable logic
Electrical connection	Removable spring terminal block, 1.5 mm² / AWG 16
Input/output type	2 discrete output(s) 6 discrete input(s) 2 analog input(s) configurable voltage, current or probe
Output current limits	<= 100 mA, assignable logic
Product or component type	Additional I/O module
Product weight	0.5 kg
Range compatibility	Altivar Process Altivar Easy 610
Reverse polarity protection	Yes on digital input
Short-circuit protection	Yes on output

Yderliger oplysninger: Se venligst SE katalog
