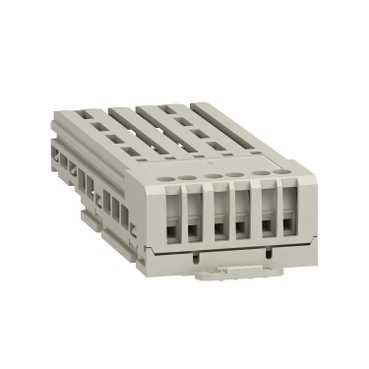

I/O udvidelseskort 3 relĉudgange
| Varenr: | VW3A3204 |
| El nr: | 7565721607 |
| EAN13 nr: | null |
| Pakning: | 0stk |
 |
| Discrete output number | 3 |
| Discrete output type | (R11, R12, R13) relay normally open, sampling time: <= 1 ms |
| Electrical connection | Screw terminal block, 1.5 mm² / AWG 16, 0.5 N.m |
| Electrical durability | 100000 cycles |
| Input/output type | 3 relay output(s) |
| Maximum switching current | 5 A at 30 V DC on resistive load (cos phi = 1 and L/R = 5 ms) 5 A at 250 V AC on resistive load (cos phi = 1 and L/R = 5 ms) 2 A at 30 V DC on inductive load (cos phi = 0.4 and L/R = 5 ms) 2 A at 250 V AC on inductive load (cos phi = 0.4 and L/R = 5 ms) |
| Minimum switching current | 5 mA for 24 V DC |
| Product or component type | Additional output module |
| Product weight | 0.4 kg |
| Range compatibility | Altivar Process Altivar Easy 610 |
Yderliger oplysninger:
Se venligst SE katalog©Schneider Electric A/S 2025
