| [Us] rated supply voltage | 24 V DC |
| Ambient air temperature for operation | 0...50 °C |
| Ambient air temperature for storage | -20...60 °C |
| Anbefalede temperatur ved betjening | 0...50 °C |
| Antal af statisk funktionstaster | 10 with LED and labels |
| Antal alfanumeriske taster | 12 |
| Antal SERVICE taster | 8 |
| Antal sider | Limited by internal memory capacity |
| Backlight lifespan | 58000 hours |
| Backlight lifespan | 58000 timer |
| Bredde | 220.3 mm |
| Brightness | 8 levels via touch panel |
| Character font | ASCII (European characters) Chinese (simplified Chinese) Japanese (ANK, Kanji) Korean Taiwanese (traditional Chinese) |
| Clock frekvens | 133 MHz |
| Contrast | 8 levels via touch panel |
| Cut-out dimensions | 209 (+/- 0.4) x 243 (+/- 0.4) mm |
| Depth | 60.3 mm |
| Dislplaystørrelse | 5.7 tommer |
| Display colour | 16 grå niveauer Sort og hvid |
| Display colour | 16 levels of grey Black and white |
| Display resolution | 320 x 240 pixels QVGA |
| Display size | 5.7 inch |
| Display type | Backlit monochrome STN LCD |
| Displayopløsning | 320 x 240 pixels QVGA |
| Displaytype | Backlit monochrome STN LCD |
| Downloadable protocols | Uni-TE Telemecanique Modicon Third party protocols Siemens Simatic Third party protocols Rockwell Automation Allen-Bradley Third party protocols Omron Sysmac Third party protocols Mitsubishi Melsec Modbus Telemecanique Modicon Modbus TCP Telemecanique Mod |
| Driftshøjde | < 2000 m |
| Driftssystem | Magelis |
| Dybde | 60.3 mm |
| EAN-nummer | 3595863961812 |
| Enclosure material | PPT |
| Ethernetport | 10BASE-T/100BASE-TX |
| Fastgjort | Med 10 fjederklips By 4 screw clamps |
| Fixing mode | By 10 spring clips By 4 screw clamps |
| Fonttype | ASCII (European characters) Chinese (simplified Chinese) Japanese (ANK, Kanji) Korean Taiwanese (traditional Chinese) |
| Forsyning | Ekstern kilde |
| Forsyningsspændingsgrænser | 19.2...28.8 V |
| Front material | Aluminium alloy |
| Front material | Aluminium legering |
| Height | 265 mm |
| Hukommelsesbeskrivelse | Back up of data SRAM 512 kB lithium batteri Applikations hukommelse flash EPROM 16 MB |
| Hukommelsestype | 1 slot for Compact Flash card (128 MB to 1 GB) |
| Højde | 265 mm |
| Immunity to microbreaks | <= 5 ms |
| Imunitet over for microafbrydelser | <= 5 ms |
| Indkoblingsstrøm | <= 30 A |
| Inrush current | <= 30 A |
| Integrated connection type | Power supply removable screw terminal block COM2 serial link RJ45 RS485 <= 187.5 kbit/s Siemens MPI (187.5 kbits/s) COM1 serial link male SUB-D 9 RS232C/RS422/RS485 <= 115.2 kbits/s 1 USB type A master port (V1.1) Modicon M340 terminal port communication |
| Integrated slot type | For 1 fieldbus communication card (Device Net, Profibus DP) |
| Integreret forbindelse | Effektforsyning aftagelig skrue terminal COM2 serial link RJ45 RS485 <= 187.5 kbit/s Siemens MPI (187.5 kbits/s) COM1 serial link han SUB-D 9 RS232C/RS422/RS485 <= 115.2 kbits/s 1 USB type A master port (V1.1) Modicon M340 terminal port communication |
| IP degree of protection | IP65 (front panel) conforming to IEC 60529 IP20 (rear panel) conforming to IEC 60529 |
| IP kapslingsklasse | IP65 (front panel) i henhold til IEC 60529 18-22 (bagved panel) i henhold til IEC 60529 |
| Kasplingsmateriale | PPT |
| Kommerciel status | Commercialised |
| Kontrast | 8 levels via touch panel |
| Lagerkode | Ikke på lager |
| Local signalling | 1 LED (green or orange) for normal operation or backlighting faulty |
| Lokal indikering | 1 LED (grøn eller orange) til normal operation or backlighting faulty |
| Lysintensitet | 8 levels via touch panel |
| Marking | CE |
| Memory description | Back up of data SRAM 512 kB lithium battery Application memory flash EPROM 16 MB |
| Memory type | 1 slot for Compact Flash card (128 MB to 1 GB) |
| Modstand mod hurtige transienter | 2 kV i henhold til IEC 61000-4-4 Level 3 |
| Montering | Plan montage |
| Mærkning | CE |
| NEMA degree of protection | NEMA 4X front panel (indoor use) |
| NEMA kapslingsklasse | NEMA 4X front panel (indoor use) |
| Number of alphanumeric keys | 12 |
| Number of dynamic function keys symb | 14 with LED |
| Number of pages | Limited by internal memory capacity |
| Number of SERVICE keys | 8 |
| Number of static function keys | 10 with LED and labels |
| Operating altitude | < 2000 m |
| Operating system | Magelis |
| Port Ethernet | 10BASE-T/100BASE-TX |
| Power consumption | 26 W |
| Processor frequency | 133 MHz |
| Processor name | CPU RISC |
| Processornavn | CPU RISC |
| Product certifications | CSA Class 1 Division 2 T4A CSA Class 1 Division 2 T5 C-Tick CULus UL Class 1 Division 2 T4A UL Class 1 Division 2 T5 |
| Product end of life instructions | Available |
| Product environmental profile | Available |
| Product environmental profile | Tilgængelig |
| Product mounting | Flush mounting |

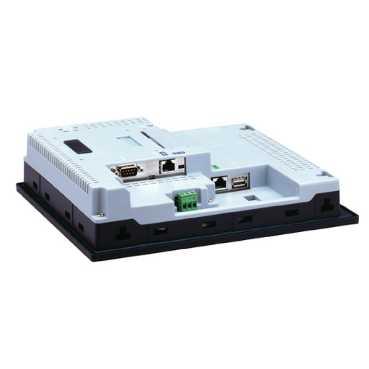

| Product or component type | Advanced touchscreen panel with keyboard |
| Productcertificeringer | CSA klassa 1 Division 2 T4A CSA klasse 1 Division 2 T5 C-Tick CULus UL Class 1 Division 2 T4A UL Class 1 Division 2 T5 |
| Produktsortiment | Magelis XBTGK |
| Produkttype | Advanced touchscreen panel with keyboard |
| Range of product | Magelis XBTGK |
| Protokoller til download | Uni-TE Telemecanique Modicon 3 parti protokol Siemens Simatic 3 parti protokol Rockwell Automation Allen-Bradley 3 parti protokol Omron Sysmac 3 parti protokol Mitsubishi Melsec Modbus Telemecanique Modicon Modbus TCP Telemecanique Modicon Modbus Plus Tel |
| REACh | Reference not containing SVHC above the threshold |
| Realtidsur | Indbygget |
| Realtime clock | Built-in |
| Relativ fugtighed | 0...90 % without condensation |
| Relative humidity | 0...90 % without condensation |
| Resistance to electromagnetic fields | 10 V/m conforming to IEC 61000-4-3 |
| Resistance to electromagnetic fields | 10 V/m i henhold til IEC 61000-4-3 |
| Resistance to electrostatic discharge | 4 kV IEC 61000-4-2 level 3 |
| Resistance to fast transients | 2 kV conforming to IEC 61000-4-4 level 3 |
| RoHS (date code: YYWW) | Compliant - since 0739 - Schneider Electric declaration of conformity |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Shockmodstand | 15 gn til 11 ms i henhold til IEC 60068-2-27 |
| Software designation | Vijeo Designer |
| Software type | Configuration software |
| Software udpegning | Vijeo Designer |
| Softwaretype | Konfigurerings software |
| Standarder | EN 61131-2 FCC Class A IEC 61000-6-2 UL 1604 UL 508 CSA C22.2 No 14 |
| Standards | EN 61131-2 FCC Class A IEC 61000-6-2 UL 1604 UL 508 CSA C22.2 No 14 |
| Supply | External source |
| Supply voltage limits | 19.2...28.8 V |
| Sustainable offer status | Green Premium product |
| Sustainable offer status | Green Premium produkt |
| Touch panel | Analog |
| Touch panel | Analogue |
| Touch sensitive zone | 1024 x 1024 |
| Udskæringsdimensioner | 209 (+/- 0.4) x 243 (+/- 0.4) mm |
| Vibration resistance | 3.5 mm conforming to IEC 60068-2-6 (f = 5...9 Hz) 1 gn conforming to IEC 60068-2-6 (f = 9...150 Hz) |
| Vibrationsmodstand | 3.5 mm i henhold til IEC 60068-2-6 (f = 5...9 Hz) 1 gn i henhold til IEC 60068-2-6 (f = 9...150 Hz) |
| Width | 220.3 mm |
