| [Us] rated supply voltage | 5 V DC |
| Ambient air temperature for storage | -20...60 °C |
| Anbefalede temperatur ved betjening | 0...55 °C |
| Antal beskeder i displayet | 10 lines of 33 characters maximum 2 lines of 5 characters minimum Graphic objects (bargraph, button, light...) |
| Antal sider | 200 applikationsside 256 alarm sider |
| Antal taster | 12 |
| Bredde | 137 mm |
| Display colour | Grøn |
| Display material | Polyester |
| Displayopløsning | 198 x 80 pixels |
| Displaytype | Extra-bright matrix backlit LCD |
| Driftssystem | Windows |
| Dybde | 79 mm |
| EAN-nummer | 3595863934953 |
| Fastgørelse | Med 4 fjederklipse til 1.5 to 6 mm thick panel |
| Fonttype | Chinese (simplified Chinese) Cyrillic Greek Katakana Latin |
| Forsyning | From PLC (terminal port) |
| Frontmateriale | PPT |
| Hukommelsestype | Blinklys |
| Højde | 118 mm |
| Integreret forbindelse | Seriel link : hun RJ45, asynchronous transmissionstilstand (RS232C/RS485) punkt til punkt topologi |
| IP kapslingsklasse | IP65 (front panel) i henhold til IEC 60529 18-22 (bagved panel) i henhold til IEC 60529 |
| Keypad material | Polyester |
| Kommerciel status | Commercialised |
| Lagerkode | Ikke på lager |
| Memory capacity | 512 kB |
| Montering | Plan montage |
| Mærkning | CE |
| NEMA kapslingsklasse | NEMA 4X (front panel) til indoor use |
| Number of customisable keys | 10 |
| Number of fixed keys | 2 |
| Product end of life instructions | Need no specific recycling operations |
| Product environmental profile | Tilgængelig Download Produktmiljøprofil |
| Productcertificeringer | ATEX zone 2/22 CSA class 1 division 2 UL klasse 1 Division 2 UL 1604 |
| Produktsortiment | Magelis XBTRT |

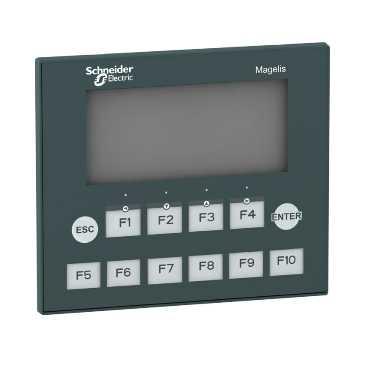

| Produkttype | Small panel with touchscreen and keypad |
| Protokoller til download | Modbus 3 parti protokol Uni-TE |
| REACh | Reference not containing SVHC above the threshold |
| Realtidsur | Access to the PLC real-time clock |
| Reguleringskompatibilitet | Modicon M340 Modicon Premium Modicon TSX Micro Twido |
| Relativ fugtighed | 0...85 % without condensation |
| Resistance to electromagnetic fields | 10 V/m i henhold til IEC 61000-4-3 |
| RoHS (date code: YYWW) | Compliant - since 0730 - Schneider Electric declaration of conformity |
| Shockmodstand | 15 gn til 11 ms i henhold til IEC 60068-2-27 |
| Software udpegning | Vijeo Designer Lite |
| Softwaretype | Konfigurerings software |
| Standarder | IEC 60068-2-27 IEC 60068-2-6 IEC 61131-2 UL 508 CSA C22.2 No 14 |
| Sustainable offer status | Green Premium produkt |
| Touch sensitive zone | Matrix, 11 x 5 cells |
| Udskæringsdimensioner | 119.6 (+/- 0.5) x 105.2 (+/- 0.4) mm |
| Vibrationsmodstand | 1 gn (f = 8.45...150 Hz) i henhold til IEC 60068-2-6 +/- 3.5 mm (f = 2...8.45 Hz) i henhold til IEC 60068-2-6 |
| Vægt | 0.55 kg |
