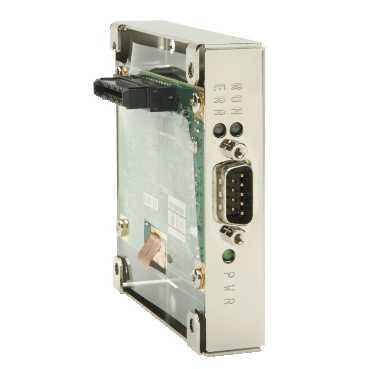

CANopen masterenhed til operatørpaneler
| Varenr: | XBTZGCANM |
| El nr: | 7586029744 |
| EAN13 nr: | 3595864023793 |
| Pakning: | 1stk |
 |
| [Us] rated supply voltage | 5 V DC |
| Ambient air temperature for operation | 0...50 °C |
| Bus type | CANopen conformity class: M10, profile: DS 301 V4.02 CANopen conformity class: M10, profile: DR 303-1 |
| Integrated connection type | CANopen master bus male SUB-D 9, 2 twisted shielded pairs |
| IP degree of protection | IP20 |
| Marking | CE |
| Number of channels | 64 TPDO 64 RPDO |
| Number of modules per base controller | 1 |
| Number of slave | <= 16 |
| Power dissipation in W | 2.4 W at 5 V DC |
| Product certifications | UL |
| Product compatibility | XBTGK2120 XBTGK2330 XBTGK5330 XBTGT2110 XBTGT2120 XBTGT2130 XBTGT2220 XBTGT2330 XBTGT4230 XBTGT4330 XBTGT4340 XBTGT5230 XBTGT5330 XBTGT5340 XBTGT6330 XBTGT6340 XBTGT7340 XBTGT2430 XBTGT2930 XBTGT5430 |
| Product end of life instructions | Available |
| Product environmental profile | Available |
| Product or component type | CANopen bus master module |
| Product weight | 0.1 kg |
| Range of product | Magelis XBT GC, GT/GK with control |
| REACh | Reference contains SVHC above the threshold - Go to CaP for more details |
| Relative humidity | 10...90 % without condensation |
| RoHS (date code: YYWW) | Compliant - since 0627 - Schneider Electric declaration of conformity |
| Status LED | 1 LED for RUN 1 LED for PWR 1 LED for ERR |
| Supply | External supply |
| Sustainable offer status | Green Premium product |
| Transmission rate | 500 kbit/s, bus length = <= 125 m 50 kbit/s, bus length = <= 800 m 250 kbit/s, bus length = <= 250 m 20 kbit/s, bus length = <= 1000 m 125 kbit/s, bus length = <= 425 m 1000 kbit/s, bus length = <= 50 m 100 kbit/s, bus length = <= 500 m |
Yderliger oplysninger:
Se venligst SE katalog©Schneider Electric A/S 2025
