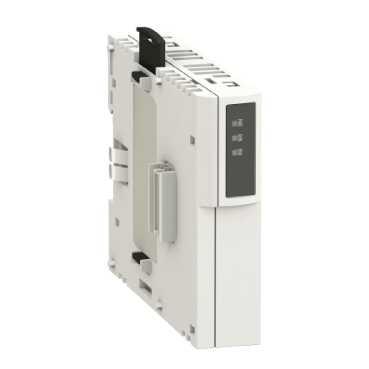

CANopen masterenhed til HMI-paneler


[Us] rated supply voltage	5 V DC
Ambient air temperature for operation	0...50 °C
Bus type	CANopen conformity class: M10, profile: DS 301 V4.02 CANopen conformity class: M10, profile: DR 303-1
Integrated connection type	CANopen master bus male SUB-D 9, 2 twisted shielded pairs
IP degree of protection	IP20
Marking	CE
Number of channels	64 TPDO 64 RPDO
Number of modules per base controller	1
Number of slave	<= 16
Power dissipation in W	2.4 W at 5 V DC
Product certifications	UL
Product compatibility	XBTGC1100T XBTGC1100U XBTGC2120T XBTGC2120U XBTGC2230T XBTGC2230U
Product end of life instructions	Available
Product environmental profile	Available
Product or component type	CANopen bus master module
Product weight	0.1 kg
Range of product	Magelis XBT GC, GT/GK with control
REACh	Reference contains SVHC above the threshold - Go to CaP for more details
Relative humidity	10...90 % without condensation
RoHS (date code: YYWW)	Compliant - since 0627 - Schneider Electric declaration of conformity
Status LED	1 LED for RUN 1 LED for PWR 1 LED for ERR
Supply	External supply
Sustainable offer status	Green Premium product
Transmission rate	500 kbit/s, bus length = <= 125 m 50 kbit/s, bus length = <= 800 m 250 kbit/s, bus length = <= 250 m 20 kbit/s, bus length = <= 1000 m 125 kbit/s, bus length = <= 425 m 1000 kbit/s, bus length = <= 50 m 100 kbit/s, bus length = <= 500 m
