| [Ui] rated insulation voltage | 300 V conforming to CSA C22.2 No 14 500 V degree of pollution 3 conforming to IEC 60947-1 300 V conforming to UL 508 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 6 kV conforming to IEC 60664 |
| Associated body | ZCT27 |
| Contact code designation | Q300, DC-13 (Ue = 250 V, Ie = 0.27 A) conforming to EN/IEC 60947-5-1 appendix A A300, AC-15 (Ue = 240 V, Ie = 3 A) , Ithe = 10 A conforming to EN/IEC 60947-5-1 appendix A |
| Contacts insulation form | Zb |
| Contacts material | Silver plated contacts |
| Contacts operation | Slow-break, simultaneous |
| Contacts type and composition | 2 NC |
| Device short name | XE2N |
| Electrical connection | Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm² |
| Electrical durability | 5000000 cycles, DC-13 48 V, 9 W, operating rate: < 60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 5000000 cycles, DC-13 24 V, 13 W, operating rate: < 60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 5000000 cycles, DC |
| Minimum actuation speed | 6 m/min |
| Number of poles | 2 |
| Positive opening | With |
| Product compatibility | XCKT |
| Product end of life instructions | Need no specific recycling operations |
| Product environmental profile | Available Download Product environmental |

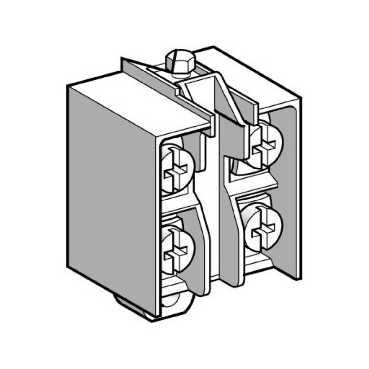

| Product or component type | Limit switch contact block |
| Range of product | OsiSense XC |
| REACh | Reference not containing SVHC above the threshold |
| Resistance across terminals | < 25 mOhm conforming to IEC 60255-7 category 3 |
| RoHS (date code: YYWW) | Compliant - since 0851 - Schneider Electric declaration of conformity |
| Series name | Standard format |
| Short circuit protection | 10 A by gG cartridge fuse |
| Sustainable offer status | Green Premium product |
