| [Sn] nominal sensing distance | 10...70 mm |
| [Us] rated supply voltage | 24 V DC conforming to Protective Extra Low Voltage |
| Ambient air temperature for operation | -25...70 °C |
| Ambient air temperature for storage | -40...85 °C |
| Associated tag type | Automatic detection of the type of tag ISO 14443 standard tags ISO 15693 standard tags |
| Communication port protocol | Modbus RTU Uni-Telway |
| Communication port support | RS485 |
| Current consumption | < 60 mA |
| Design | Flat form 40 x 40 x 15 |
| Electrical connection | 5 pin(s) male remote connector M12, shielded cable cable 0.2 m |
| Electromagnetic compatibility | Magnetic field at power frequency ( level: 4) - test level 30 A/m conforming to IEC 61000-4-8 Conducted RF disturbances ( level: 3) - test level 10 V conforming to IEC 61000-4-6 1.2/50 µs shock waves immunity test ( level: 3) - test level 10 kV conforming |
| IK degree of protection | IK02 conforming to EN 50102 |
| IP degree of protection | IP67 conforming to IEC 60529 |
| Marking | CE |
| Outer dimension | 40 x 40 x 15 mm |
| Product certifications | UL, FCC |
| Product compatibility | RFID microchip INSIDE (micropass) RFID microchip STM (CRIX4K) RFID microchip Texas (Tag-it HFI) RFID microchip Fujitsu (MB89R118 - MB89R119) RFID microchip NXP (SL2, SL1, Ultralight, Std 1K/4K, Desfire) RFID microchip Microelectronic (EM4135) |
| Product end of life instructions | Available Download End of life manual |
| Product environmental profile | Available Download Product environmental |

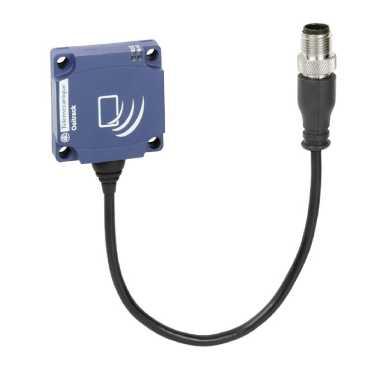

| Product or component type | Compact smart antenna |
| Product weight | 0.057 kg |
| Range of product | OsiSense XG |
| REACh | Reference not containing SVHC above the threshold |
| RFID compact station name | XGCS |
| RFID frequency | 13.56 MHz |
| RoHS (date code: YYWW) | Compliant - since 0824 - Schneider Electric declaration of conformity |
| Shock resistance | 30 gn for 11 ms conforming to EN 60068-2-27 |
| Standards | ETSI EN 301 489-1 ETSI EN 301 489-3 ETSI EN 300 330-1 ETSI EN 300 330-2 |
| Status LED | 1 LED (dual colour) for RFID communication 1 LED (dual colour) for communication network |
| Supply voltage limits | 19.2...29 V DC |
| Sustainable offer status | Green Premium product |
| Tightening torque | < 1 N.m |
| Transmission rate | 9600 bauds...115200 bauds (automatic detection) |
| Vibration resistance | 7 gn (f = 29.5...150 Hz) conforming to EN 60068-2-6 2 mm (f = 5...29.5 Hz) conforming to EN 60068-2-6 |
