| [Ith] conventional free air thermal current | 8 A |
| [Ui] rated insulation voltage | 300 V (degree of pollution: 2) conforming to IEC 60647-5-1, DIN VDE 0110 part 1 |
| [Uimp] rated impulse withstand voltage | 4 kV overvoltage category III conforming to IEC 60647-5-1, DIN VDE 0110 part 1 |
| [Us] rated supply voltage | 24 V DC (- 15...10 %) |
| Ambient air temperature for operation | -10...55 °C |
| Ambient air temperature for storage | -25...85 °C |
| Antal tilhørende kredse | 3 solid state udgangs |
| Anvendelse af sikkerhedsmodul | For emergency stop and switch monitoring |
| Brydeevne | 1 A at 24 V (DC-13) time constant: 50 ms for relæ udgang |
| Brydeevne | C300: 1800 VA, AC-15 (inrush) for relay output C300: 180 VA, AC-15 (holding) for relay output |
| Effektforbrug i W | <= 8 W |
| Input protection type | Internal, electronic |
| IP kapslingsklasse | IP40 (enclosure) conforming to EN/IEC 60529 IP20 (terminals) conforming to EN/IEC 60529 |
| Lokal indikering | 4 LEDs |
| Minimum udgangsspænding | 17 V for relæ udgang |
| Minimum udgangsstrøm | 10 mA for relæ udgang |
| Modulfunktion | Emergency stop button with 2 NC contacts |
| Montagevejledning | 35 mm symmetrical DIN rail |

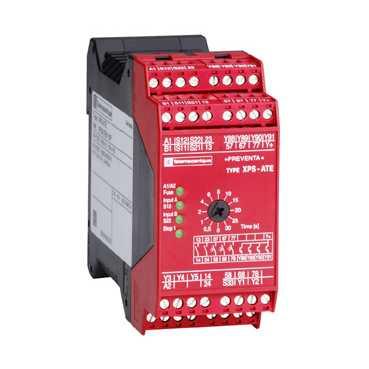

| Navn pår sikkerhedsmodul | XPSATE |
| Output thermal current | 5 A for instantaneous outputs 2.5 A for time delay outputs |
| Productcertificeringer | CSA TÜV UL |
| Produkttype | Preventa safety module |
| Range of product | Preventa Safety automation |
| Responstid på indgangsafbrydelse | <= 20 ms |
| Safety level | Can reach SILCL 2 conforming to EN/IEC 62061 time delay safety outputs Can reach SILCL 3 conforming to EN/IEC 62061 instantaneous safety outputs Can reach PL e/category 4 conforming to EN/ISO 13849-1 instantaneous safety outputs Can reach PL d/category 3 |
| Standarder | EN/IEC 60204-1 EN/IEC 60947-5-1 EN/ISO 13850 |
| Startmåde | Konfigurerbar |
| Styrespænding | 24 V DC |
| Synkroniseringstid mellem indgange | 75 ms |
| Tidsforsinkelse | Adjustable between 0 to 30 s |
| Tilslutningsfrekvens | 50/60 Hz |
| Udgangstype | Relay time delay opening 3 NO, spændingsfri Relay instantaneous opening 2 NO, spændingsfri |
| Safety reliability data | PFHd = 1.96E-8 1/h conforming to EN/IEC 62061 time delay safety outputs PFHd = 6.81E-9 1/h conforming to EN/IEC 62061 instantaneous safety outputs DC > 98.4 conforming to EN/ISO 13849-1 time delay safety outputs MTTFd = 54.5 years conforming to EN/ISO 138 |
| Tilhørende sikringsstørrelse | 6 A fuse type gG for instantaneous outputs conforming to EN/IEC 60947-5-1, DIN VDE 0660 part 200 4 A fuse type gG for time delay outputs conforming to EN/IEC 60947-5-1, DIN VDE 0660 part 200 |
| Tilslutningsklemmer | Captive screw clamp terminals, removable terminal block, clamping capacity: 2 x 0.5...2 x 1.5 mm² flexible cable with cable end, with double bezel Captive screw clamp terminals, removable terminal block, clamping capacity: 2 x 0.25...2 x 1 mm² flexible ca |
| Vægt | 0.28 kg |
