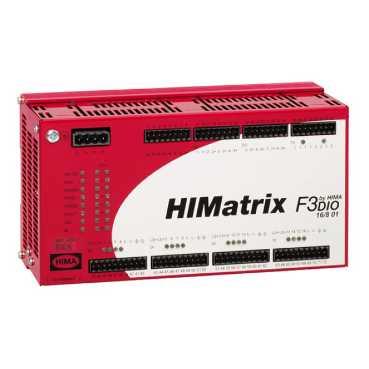

| [Us] rated supply voltage | 24 V DC (- 15...20 %) |
| Ambient air temperature for operation | 0...60 °C |
| Ambient air temperature for storage | -40...85 °C |
| Antal digitale udgange | 16, not isolated |
| Antal klemrækker | 4 for discrete input 3 for discrete output 1 for power supply 1 for line control outputs |
| Antal udgange | 2 not isolated for line control outputs |
| Anvendelse af sikkerhedsmodul | Extension of I/O capacity |
| Bredde | 205 mm |
| Digital indgangsnummer | 16, not isolated |
| Digital indgangsspænding | 20 V |
| Digital indgangsstrøm | 40 mA |
| Digital udgangspænding | 24 V DC |
| Dybde | 86.5 mm |
| Exchange mode | Half duplex, full duplex, autonegotiation |
| Forsyning | SELV or PELV conforming to EN/IEC 60950 |
| Højde | 109 mm |
| Induktiv belastning | 500 mH for separat udgang |
| Input protection type | Protected against short-circuit |
| IP kapslingsklasse | 18-22 |
| Koblingstid | 250 µs |
| Lækstrøm | <= 1 mA, at 2 V ved stadie 0 for separat udgang |
| Minimum belastning | 2 mA pr kanal |
| Montagevejledning | 35 mm symmetrical DIN rail |
| Navn pår sikkerhedsmodul | XPSMF3 |
| Nominel udgangsstrøm | 60 mA for line control outputs |
| Output voltage tolerance | +/- 3 % |
| Produkttype | Preventa safety remote mixed I/O module |
| Modulfunktion | Monitoring short-circuit and line break line control outputs Monitoring safety dialogue separat udgang Monitoring safety dialogue separat indgang Monitoring safety detection separat indgang Monitoring safety actuators separat udgang Monitoring safety actu |
| Protokol for kommunikationsport | Sikker Ethernet with 2 RJ45 port(s), transmission rate: 100 Mbps, 10 Mbps, medium: dual twisted pair cable, category 5D or better |
| Range of product | Preventa Safety automation |
| Reaktionstid | Depending on size of application |
| Safety use category | SIL 3 conforming to EN/IEC 61508 Performance level e conforming to EN/ISO 13849-1 Category 4 maximum conforming to EN 954-1 |
| Spændingstilstand 0 garanteret | <= 5 V for separat indgang |
| Spændingstilstand 1 garanteret | 15...< 30 V for separat indgang |
| Strukturtype | 10BASE-T/100BASE-TX |
| Strømforbrug | 14 A at 24 V DC on power supply |
| Switching voltage | 7.5 V for separat indgang |
| Tilgangsresistans | <= 5 kOhm for separat udgang |
| Tilhørende sikringsstørrelse | 16 A, langsom vind |
| Tilstand 0 garanteret | 1...1.5 mA, separat indgang |
| Tilstand 1 garanteret | < 2 mA, separat indgang |
| Udgangsspænding | 20 V line control outputs |
| Udgangsstrøm | 2 A at 40 °C (channels 1 to 3, 5 to 7, 4 and 8) 1 A at 60 °C (channels 1 to 3, 5 to 7, 4 and 8) > 10 mA at 60 °C (channels 1 to 3, 5 to 7, 4 and 8) <= 9 A (all channels) |
| Vægt | 1.3 kg |
| Wolfram belastning | 25 W for separat udgang |
