| [Us] rated supply voltage | 24 V DC (- 15...20 %) |
| Acquisition period | Once per CPU cycle |
| Ambient air temperature for operation | 0...60 °C EN/IEC 61131-2 |
| Ambient air temperature for storage | -40...85 °C EN/IEC 61131-2 |
| Analoge Indgange | 8, unipolar isolated 4, bipolar isolated |
| Antal klemrækker | 2 |
| Class of protection against electric shock | Klasse II conforming to IEC 61131-2 |
| Driftshøjde | < 2000 m |
| Electromagnetisk kompatibilitet | EN/IEC 61131-2 |
| Forbigående afvigelse | <= +/-1 % |
| Forureningsgrad | 2 |
| Gruppe af kanaler | 1 group of 8 or 2 groups of 4 inputs |
| Indgangsspændingsgrænser | +/- 10.25 V +/- 10.7 V maximum |
| Indre modstand | 1 MOhm |
| IP kapslingsklasse | 18-22 with covering plate on unused in rack I/O card slots |
| Maksimal overspænding på indgangen | -15...15 V |
| Modulfunktion | Single-pole measuring of 0 to 20 mA currents Single-pole measuring of - 10 V to 10 V voltages Closed circuit scanning of input channels 2-pole measuring of - 10 to 10 V voltages |
| Mærkning | CE |
| Navn pår sikkerhedsmodul | XPS MF60 |
| Opløsning | 12 bits maximum 9 bits effective |
| Output voltage tolerance | <= +/- 1 % |
| Processing time | 45 µs |
| Productcertificeringer | CSA C-Tick TÜV UL |

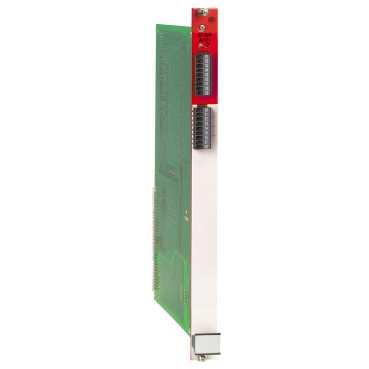

| Produkttype | Analogue input card |
| Range of product | Preventa Safety automation |
| Relativ fugtighed | 95 % (supply not connected) |
| Resistance to electromagnetic fields | 10 V/m (26 MHz...1 GHz), amplitude modulation 80 % conforming to EN/IEC 61000-4-3 |
| Resistance to electrostatic discharge | 8 kV on air conforming to EN/IEC 61000-4-2 4 kV kontakt conforming to EN/IEC 61000-4-2 |
| Safety use category | SIL 3 conforming to EN/IEC 61508 Performance level e conforming to EN/ISO 13849-1 Category 4 maximum conforming to EN 954-1 |
| Shockmodstand | 15 gn for 11 ms (2 cycles per axis), conforming to EN 61131-2 |
| Signaltyper | 0...20 mA with shunt - 10...10 V |
| Sikkerhedsnøjagtighed | <= +/-1 % for analogue input circuit |
| Standarder | DIN V 0801 DIN V 19250 EN 50156 pending IEC 61131 |
| Strømforbrug | 380 mA at 24 V DC on effektforsyning 150 mA at 3.3 V DC on rack |
| Strømforbruggrænser | 0...20.5 mA with shunt |
| Tilslutningsklemmer | Aftagelig skrue terminal, clamping capacity: 2 x 0.5 mm², AWG AWG 20 fleksibel med kabel ende Aftagelig skrue terminal, clamping capacity: 2 x 0.25...2 x 0.34 mm², AWG 22 fleksibel uden kabel ende Aftagelig skrue terminal, clamping capacity: 2 x 0.14...2 |
| Vibrationsmodstand | 1 gn (f = 10...150 Hz) conforming to EN 61131-2 (10 cycles per axis) |
| Vægt | 0.24 kg |
| Ydre modstand | 500 Ohm for 250 Ohm for |
