| [Us] rated supply voltage | 3.3 V DC/1.5 A) 5 V DC 1 A |
| Ambient air temperature for operation | 0...60 °C |
| Ambient air temperature for storage | -40...85 °C EN/IEC 61131-2 |
| Antal adresser | 122 Modbus RTU |
| Anvendelse af sikkerhedsmodul | CPU |
| Class of protection against electric shock | Klasse II conforming to IEC 61131-2 |
| Driftshøjde | < 2000 m |
| Electromagnetisk kompatibilitet | EN/IEC 61131-2 |
| Exchange mode | Half duplex, full duplex, autonegotiation |
| Forureningsgrad | 2 |
| Function available | Diagnostics on user program, sikker Ethernet Diagnostics on operating voltage and temperature, sikker Ethernet Diagnostics on inputs and outputs Diagnostics on CPU, sikker Ethernet Diagnostics on communication, sikker Ethernet Control of transmitted data, |
| Hukommelsesbeskrivelse | Bruger logic 500 kB for data Bruger logic 500 kB for Application |
| IP kapslingsklasse | 18-22 with covering plate on unused in rack I/O card slots |
| Koncept | Transparent Ready, Modbus TCP/IP |

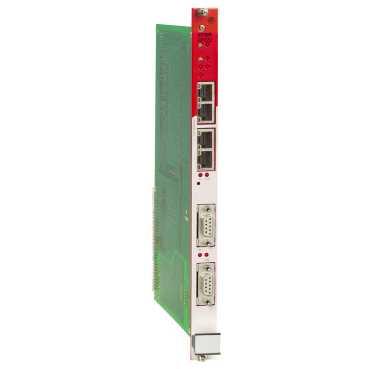

| Navn pår sikkerhedsmodul | XPS MF60 |
| Produkttype | Preventa safety PLC CPU |
| Range of product | Preventa Safety automation |
| Reaktionstid | Depending on size of application |
| Relativ fugtighed | 95 % (supply not connected) |
| Resistance to electromagnetic fields | 10 V/m (26 MHz...1 GHz), amplitude modulation 80 % conforming to EN/IEC 61000-4-3 |
| Protokol for kommunikationsport | Sikker Ethernet with 4 RJ45 port(s), transmission rate: 100 Mbps, 10 Mbps, medium: dual twisted pair cable, category 5D or better Modbus TCP/IP with 4 RJ45 port(s), transmission rate: 100 Mbps, 10 Mbps, medium: dual twisted pair cable, category 5D or bett |
| Resistance to electrostatic discharge | 8 kV on air conforming to EN/IEC 61000-4-2 4 kV kontakt conforming to EN/IEC 61000-4-2 |
| Safety use category | SIL 3 conforming to EN/IEC 61508 Performance level e conforming to EN/ISO 13849-1 Category 4 maximum conforming to EN 954-1 |
| Shockmodstand | 15 gn for 11 ms (2 cycles per axis), conforming to EN 61131-2 |
| Standarder | DIN V 0801 DIN V 19250 EN 50156 pending IEC 61131 |
| Strukturtype | 10BASE-T/100BASE-TX, sikker Ethernet 10BASE-T/100BASE-TX, Modbus TCP/IP |
| Tilgangs metode | Slave, Modbus TCP/IP Slave, Modbus RTU |
| Ur | Med, supplied by backup capacitor for 1 week following loss of supply |
| Vibrationsmodstand | 1 gn (f = 10...150 Hz) conforming to EN 61131-2 (10 cycles per axis) |
| Vægt | 0.28 kg |
| Web server | Klasse A10, Modbus TCP/IP |
| Webtjenester | Standard 502, Modbus TCP/IP Modbus TCP/IP server, Modbus TCP/IP Modbus TCP/IP messaging (reading/writing of data words), Modbus TCP/IP Modbus identification request, Modbus TCP/IP |
