| [Us] rated supply voltage | 24 V DC (- 15...20 %) |
| Ambient air temperature for operation | 0...60 °C EN/IEC 61131-2 |
| Ambient air temperature for storage | -40...85 °C EN/IEC 61131-2 |
| Antal klemrækker | 3 |
| Class of protection against electric shock | Klasse II conforming to IEC 61131-2 |
| Digital indgangsnummer | 24, isolated |
| Digital indgangsspænding | 127 V AC 110 V DC |
| Driftshøjde | < 2000 m |
| Electromagnetisk kompatibilitet | EN/IEC 61131-2 |
| Forureningsgrad | 2 |
| Gruppe af kanaler | 3 groups of 8 discrete inputs |
| IP kapslingsklasse | 18-22 with covering plate on unused in rack I/O card slots |
| Modulfunktion | Monitoring safety dialogue Monitoring safety detection |
| Mærkning | CE |
| Navn pår sikkerhedsmodul | XPS MF60 |
| Productcertificeringer | CSA C-Tick TÜV UL |

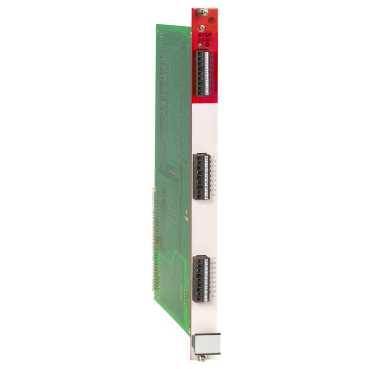

| Produkttype | Digital input card |
| Range of product | Preventa Safety automation |
| Relativ fugtighed | 95 % (supply not connected) |
| Resistance to electromagnetic fields | 10 V/m (26 MHz...1 GHz), amplitude modulation 80 % conforming to EN/IEC 61000-4-3 |
| Resistance to electrostatic discharge | 8 kV on air conforming to EN/IEC 61000-4-2 4 kV kontakt conforming to EN/IEC 61000-4-2 |
| Safety use category | SIL 3 conforming to EN/IEC 61508 Performance level e conforming to EN/ISO 13849-1 Category 4 maximum conforming to EN 954-1 |
| Shockmodstand | 15 gn for 11 ms (2 cycles per axis), conforming to EN 61131-2 |
| Spændingstilstand 0 garanteret | <= 20 V |
| Spændingstilstand 1 garanteret | >= 79 V |
| Standarder | DIN V 0801 DIN V 19250 EN 50156 pending IEC 61131 |
| Strømforbrug | 0,1 A at 24 V DC on effektforsyning 0.05 A at 3.3 V DC on rack |
| Tilstand 1 garanteret | >= 2.2 mA |
| Vibrationsmodstand | 1 gn (f = 10...150 Hz) conforming to EN 61131-2 (10 cycles per axis) |
| Vægt | 0.26 kg |
| Tilslutningsklemmer | Aftagelig skrue terminal, clamping capacity: 2 x 0.5 mm², AWG AWG 20 fleksibel med kabel ende Aftagelig skrue terminal, clamping capacity: 2 x 0.25...2 x 0.34 mm², AWG 22 fleksibel uden kabel ende Aftagelig skrue terminal, clamping capacity: 2 x 0.14...2 |
