| [Us] rated supply voltage | 24 V DC (- 15...20 %) |
| Ambient air temperature for operation | 0...60 °C EN/IEC 61131-2 |
| Ambient air temperature for storage | -40...85 °C EN/IEC 61131-2 |
| Antal udgange | 8 relay |
| Class of protection against electric shock | Klasse II conforming to IEC 61131-2 |
| Driftshøjde | < 2000 m |
| Electromagnetisk kompatibilitet | EN/IEC 61131-2 |
| Elektrisk holdbarhed | >= 250000 cycles |
| Forureningsgrad | 2 |
| IP kapslingsklasse | 18-22 with covering plate on unused in rack I/O card slots |
| Koblingsevne i VA | <= 700 VA, cos ? = 1 |
| Koblingsstrøm | 3.15 A/100 A with internal fuse |
| Koblingstid | 30 ms |
| Kontaktmateriale | Silver alloy, gold flashed |
| Mekanisk holdbarhed | >= 10000000 cycles |
| Modulfunktion | Monitoring safety dialogue Monitoring safety actuators |
| Mærkning | CE |
| Navn pår sikkerhedsmodul | XPS MF60 |
| Productcertificeringer | CSA C-Tick TÜV UL |

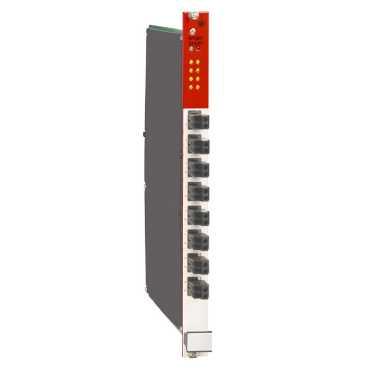

| Produkttype | Relay output card |
| Range of product | Preventa Safety automation |
| Relativ fugtighed | 95 % (supply not connected) |
| Resettid | 20 ms |
| Resistance to electromagnetic fields | 10 V/m (26 MHz...1 GHz), amplitude modulation 80 % conforming to EN/IEC 61000-4-3 |
| Resistance to electrostatic discharge | 8 kV on air conforming to EN/IEC 61000-4-2 4 kV kontakt conforming to EN/IEC 61000-4-2 |
| Safety use category | SIL 3 conforming to EN/IEC 61508 Performance level e conforming to EN/ISO 13849-1 Category 4 maximum conforming to EN 954-1 |
| Shockmodstand | 15 gn for 11 ms (2 cycles per axis), conforming to EN 61131-2 |
| Standarder | DIN V 0801 DIN V 19250 EN 50156 pending IEC 61131 |
| Strømforbrug | 0.7 A at 24 V DC on effektforsyning 0.2 A at 3.3 V DC on rack |
| Switching capacity in W | <= 95/<= 30 V with suitable external fuse <= 40/<= 70 V <= 33/<= 110 V |
| Switching voltage | 6...250 V AC |
| Tid for kontaktspring | 30 ms |
| Tilslutningsklemmer | Aftagelig skrue terminal, clamping capacity: 2 x 0.5 mm², AWG AWG 20 fleksibel med kabel ende Aftagelig skrue terminal, clamping capacity: 2 x 0.25...2 x 0.34 mm², AWG 22 fleksibel uden kabel ende Aftagelig skrue terminal, clamping capacity: 2 x 0.14...2 |
| Udgangstype | Relæ, with 2 NO per output, spændingsfri |
| Vibrationsmodstand | 1 gn (f = 10...150 Hz) conforming to EN 61131-2 (10 cycles per axis) |
| Vægt | 0.6 kg |
