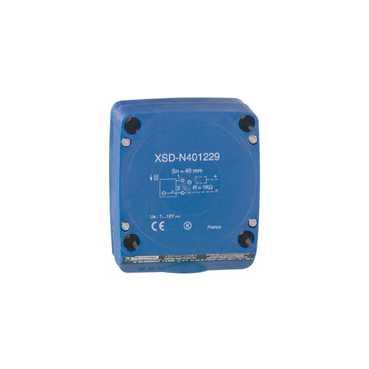

Induktiv sensor XSD 80x80x40 - plastik - Sn40mm - 7..12VDC - terminaler
| Varenr: | XSDN401229EX |
| El nr: | 7524020983 |
| EAN13 nr: | 3389110955590 |
| Pakning: | 1stk |
 |
| [Sn] nominal sensing distance | 40 mm |
| [Us] rated supply voltage | 7...12 V DC |
| Ambient air temperature for operation | -20...60 °C |
| Body type | Fixed |
| Depth | 40 mm |
| Detection face | Frontal |
| Detector flush mounting acceptance | Non flush mountable |
| Discrete output function | 1 NC |
| Discrete output type | Namur |
| Dust zone | Zone 20 |
| Electrical connection | Screw-clamp terminals |
| Enclosure material | Plastic |
| Front material | Plastic |
| Height | 100 mm |
| IP degree of protection | IP67 conforming to IEC 60529 |
| Marking | II1 D-Ex ia IIIC T85°C Da IP66/67 |
| Material | Plastic |
| Operating zone | 0...32 mm |
| Output circuit type | DC |
| Product certifications | INERIS 04ATEX0016X |
| Product end of life instructions | Available Download End of life manual |
| Product environmental profile | Available Download Product environmental |
| Product specific application | ATEX dust |
| Range of product | OsiSense XS ATEX D |
| REACh | Reference not containing SVHC above the threshold |
| Residual current | >= 3 mA open state |
| RoHS | Will not be Compliant |
| RoHS (date code: YYWW) | Will not be Compliant |
| Sensor design | Form 80 x 80 x 40 |
| Sensor name | XSD |
| Sensor type | Inductive proximity sensor |
| Series name | Application |
| Size | 40 mm |
| Standards | Directive ATEX 94/9/EC EN/IEC 60079-0 EN/IEC 60079-11 |
| Status LED | 1 LED red (output state) |
| Sustainable offer status | Not Green Premium product |
| Switching capacity in mA | <= 1 mA |
| Switching frequency | <= 25 Hz |
| Type of output signal | Discrete |
| Width | 80 mm |
| Wiring technique | 2-wire |
Yderliger oplysninger:
