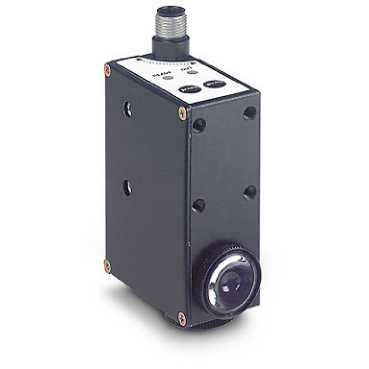

Fotoelektrisk sensor (UV-sensor) 9 mm DC PNP/NPN
| Varenr: | XURU1KSMM12 |
| El nr: | 7524804895 |
| EAN13 nr: | 3389110178234 |
| Pakning: | 1stk |
 |
| [Sn] nominal sensing distance | 18 mm spot Ĝ 7 mm need lens XURZ02 9 mm spot Ĝ 5 mm without lens 7 mm spot Ĝ 2.5 mm need lens XURZ01 |
| [Us] rated supply voltage | 12...24 V DC with reverse polarity protection |
| Add on output | With analogue output |
| Ambient air temperature for operation | -10...55 °C |
| Ambient air temperature for storage | -40...70 °C |
| Analogue output range | 0...7 V, DC |
| Current consumption | <= 20 mA (no-load) |
| Delay first up | <= 100 ms |
| Delay recovery | <= 0.25 ms |
| Delay response | <= 0.25 ms |
| Depth | 58 mm |
| Detection system | Diffuse |
| Discrete output function | 1 NO or 1 NC programmable |
| Discrete output type | PNP or NPN |
| Electrical connection | 1 male connector M12 adjustable 3 positions, 4 pins |
| Electronic sensor type | Photo-electric sensor |
| Emission | Ultra-violet (transmission frequency = 370 nm) |
| Enclosure material | Zinc alloy |
| Height | 82 mm |
| IP degree of protection | IP67 conforming to IEC 60529 |
| Lens material | Glass |
| Material | Metal |
| Output function governance | Light or dark programmable |
| Output type | Solid state |
| Product certifications | CE |
| Product specific application | Luminescence |
| Product weight | 0.55 kg |
| Range of product | OsiSense XU |
| RoHS (date code: YYWW) | Compliant - since 0623 - Schneider Electric declaration of conformity |
| Sensor design | Compact |
| Sensor name | XUR |
| Series name | Application packaging |
| Setting-up | Sensitivity adjustment with teach mode |
| Shock resistance | 30 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| Status LED | 1 LED (red) for output state 1 LED (green) for teach mode |
| Supply circuit type | DC |
| Supply voltage limits | 10...30 V DC |
| Sustainable offer status | Not Green Premium product |
| Switching capacity in mA | <= 200 mA (reverse polarity, overload and short-circuit protection) |
| Switching frequency | <= 2000 Hz |
| Time delay range | 20 ms off-delay activation/deactivation by internal switch delay |
| Type of output signal | Analogue Discrete |
| Vibration resistance | 7 gn, amplitude = +/- 0.6 mm (f = 10...55 Hz) conforming to IEC 60068-2-6 |
| Voltage drop | <= 2 V (closed state), PNP <= 1 V (closed state), NPN |
| Width | 31 mm |
| Wiring technique | 3-wire |
Yderliger oplysninger:
Se venligst SE katalog©Schneider Electric A/S 2025
