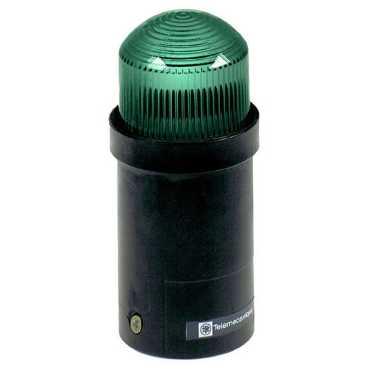

Lystableau mini blitz 230VAC grøn
| Varenr: | XVDLS6M3 |
| El nr: | 7548100342 |
| EAN13 nr: | 3389110110982 |
| Pakning: | 1stk |
 |
| [Ui] rated insulation voltage | 250 V conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 4 kV conforming to IEC 60947-1 |
| [Us] rated supply voltage | 230 V AC |
| Ambient air temperature for storage | -40...70 °C |
| Beacon/indicator bk unit type | Lysenhed Base enhed with direkte fastgøring mode |
| Beskyttelsesbehandling | TC |
| Blinkenergi | 1 J |
| Bredde | 45 mm |
| Class of protection against electric shock | Klasse II conforming to IEC 60536 |
| Dybde | 45 mm |
| Højde | 104 mm |
| IP kapslingsklasse | 22-26 conforming to IEC 60529 |
| Kabelindføring | 1 udslagsindgang for Pg 7 |
| Klemmenavn ISO n°1 | (COM-1)PW (GND)GROUND |
| Lampetype | Blinklys rør |
| Lyskilde | Grøn integral flash discharge tube |
| Material | Polycarbonate (lysenhed) Glass reinforced polyamide (base enhed) |
| Montagediameter | 45 mm |
| Productcertificeringer | CSA UL |
| Produkttype | Complete miniature beacon |
| Range of product | Harmony XVD Optimum |
| Signaltype | Blinkende |
| Standarder | EN/IEC 60947-5-1 |
| Strømforbrug | < 25 mA AC |
| Tilslutningsklemmer | Skrue klemmeterminaler, connection capacity: <= 1 x 1.5 mm² med kabel ende |
| Type nr. | XVDLS |
| Vægt | 0.085 kg |
Yderliger oplysninger:
Se venligst SE katalog©Schneider Electric A/S 2025
