Varenr: XVUC21M
Produktet findes ikke i SAP!
 |
| [Us] rated supply voltage | 100...240 V AC (tolerance: +/- 10 %) |
| Ambient air temperature for operation | -25...50 °C |
| Ambient air temperature for storage | -20...65 °C |
| Assembly style | Customer assembly, up to 5 units |

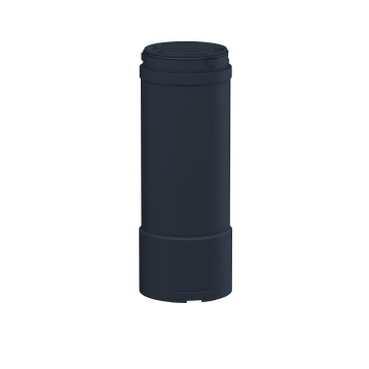

| Beacon or indicator bank unit type | Base unit |
| Class of protection against electric shock | Class II on base unit conforming to IEC 61140 |
| Component name | XVU |
| Current consumption | <= 400 mA |
| Fixing mode | Direct or tube fixing |
| Housing colour | Black |
| IP degree of protection | IP65 |
| Kit composition | Base unit (NPN) Cover |
| Length | 151 mm |
| Mounting diameter | 60 mm |
| Product certifications | CE CSA RoHS UL |
| Product or component type | Modular tower light |
| Product weight | 0.235 kg |
| Range of product | Harmony XVU |
| Material | PC (polycarbonate) V-0 flame retardant conforming to UL 94 ABS (acrylonitrile butadiene-styrene) V-0 flame retardant conforming to UL 94 PBT (polybutylene terephthalate) V-0 flame retardant conforming to UL 94 |
| Vibration resistance | 2 gn |
