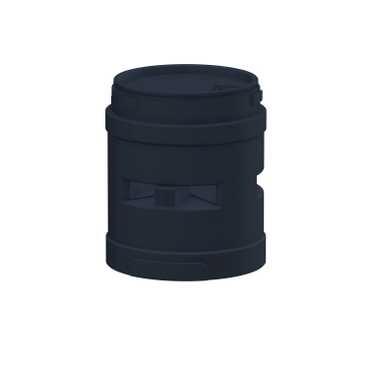

XVU lydenhed sort
| Varenr: | XVUC9S |
| El nr: | 7586048893 |
| EAN13 nr: | 3606480555879 |
| Pakning: | 1stk |
 |
| [Us] rated supply voltage | 24 V AC/DC |
| Acoustic level | 85 dB at 1 m |
| Ambient air temperature for operation | -25...50 °C |
| Ambient air temperature for storage | -40...70 °C |
| Assembly style | Customer assembly |
| Beacon or indicator bank unit type | Buzzer unit |
| Component name | XVU |
| Current consumption | <= 70 mA |
| Housing colour | Black |
| IP degree of protection | IP54 |
| Length | 58 mm |
| Localisation on device | Top |
| Material | PC (polycarbonate) V-0 flame retardant conforming to UL 94 ABS (acrylonitrile butadiene-styrene) V-0 flame retardant conforming to UL 94 PBT (polybutylene terephthalate) V-0 flame retardant conforming to UL 94 |
| Mounting diameter | 60 mm |
| Power dissipation in W | <= 1.7 W |
| Product certifications | CE CSA RoHS UL |
| Product or component type | Modular tower light |
| Product weight | 0.077 kg |
| Range of product | Harmony XVU |
| Signalling type | Continuous or intermittent buzzer |
| Sound frequency | 2635 Hz |
Yderliger oplysninger:
Se venligst SE katalog©Schneider Electric A/S 2025
