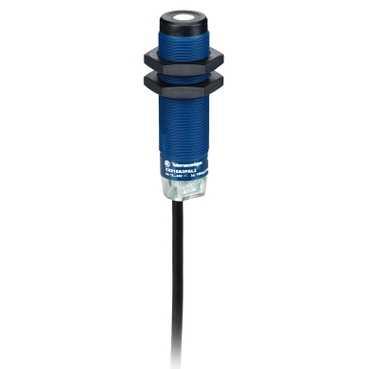

ultrasonic sensor cylindrical M18 - Sn 0.5 meter - NO - kabel 2 meter
| Varenr: | XX518A3NAL2 |
| El nr: | 7524294667 |
| EAN13 nr: | 3389119029810 |
| Pakning: | 1stk |
 |
| [Sa] assured operating distance | 0.051...0.508 m (teach mode) |
| [Sd] sensing range | 0.051...0.508 m |
| [Sn] nominal sensing distance | 0.5 m adjustable by cabling |
| [Us] rated supply voltage | 12...24 V DC with reverse polarity protection |
| Ambient air temperature for operation | -20...65 °C |
| Ambient air temperature for storage | -40...80 °C |
| Beam angle | 6 ° |
| Blind zone | 0...51 mm |
| Current consumption | 40 mA |
| Delay first up | 100 ms |
| Delay recovery | 1000 ms |
| Delay response | 10 ms |
| Depth | 64 mm |
| Detection system | Diffuse |
| Deviation angle from 90° of object to be detected | -7...7 ° |
| Discrete output function | 1 NO |
| Discrete output type | NPN |
| Electrical connection | Cable, 2 m cable length |
| Enclosure material | Valox |
| Front material | Epoxy |
| Height | 18 mm |
| IP degree of protection | IP67 conforming to IEC 60529 |
| ISO thread | M18 x 1 |
| Marking | CE |
| Material | Plastic |
| Maximum differential travel | 2.5 mm |
| Maximum switching current | 100 mA with overload and short-circuit protection |
| Minimum size of detected object | Cylinder diameter 2.5 mm up to 150 mm sensing distance |
| Product weight | 0.1 kg |
| Range of product | OsiSense XX |
| Repeat accuracy | 0.7 % |
| Resistance to electromagnetic fields | 10 V/m level 3 conforming to IEC 61000-4-3 |
| Resistance to electrostatic discharge | 8 kV level 4 conforming to IEC 61000-4-2 |
| Resistance to fast transients | 1 kV level 3 conforming to IEC 61000-4-4 |
| Sensor design | Cylindrical M18 |
| Sensor name | XX5 |
| Sensor type | Ultrasonic sensor |
| Series name | General purpose |
| Shock resistance | 30 gn in all 3 axes for 11 ms conforming to IEC 60068-2-27 |
| Standards | IEC 60947-5-2 |
| Status LED | 1 LED (yellow) for output state 1 LED (green) for supply on |
| Supply voltage limits | 10...28 V DC |
| Switching frequency | <= 40 Hz |
| Threaded length | 44 mm |
| Transmission frequency | 300 kHz |
| Type of output signal | Discrete |
| Vibration resistance | +/-1 mm conforming to IEC 60068-2-6 10...55 Hz |
| Voltage drop | < 1 V |
| Width | 18 mm |
| Wiring technique | 3-wire |
Yderliger oplysninger:
