| [Ie] rated operational current | 1.2 A at 600 V AC-15, A600 conforming to EN/IEC 60947-5-1 appendix A 0.1 A at 600 V DC-13, Q600 conforming to EN/IEC 60947-5-1 appendix A |
| [Ithe] conventional enclosed thermal current | 10 A |
| [Ui] rated insulation voltage | 600 V (degree of pollution: conforming to CSA C22.2 No 14 500 V (degree of pollution: 3) conforming to EN/IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to EN/IEC 60947-1 |
| Ambient air temperature for operation | -25...70 °C |
| Ambient air temperature for storage | -40...70 °C |
| Cable entry number | 1 tapped entry for Pg 13.5 cable gland |
| Connections - terminals | Screw clamp terminal 1 x 0.5...2 x 1.5 mm² |
| Contacts operation | Slow-break |
| Contacts type and composition | 2 NC |
| Device short name | XY2CB |
| Distance between cable supports | 5 m |
| Housing colour | Blue |
| IP degree of protection | IP65 for contact housing conforming to NF C 20-010 IP65 for contact housing conforming to EN/IEC 60529 IP22 for enclosure conforming to NF C 20-010 IP22 for enclosure conforming to EN/IEC 60529 |
| Local signalling | Without pilot light |
| Marking | CE |
| Mechanical durability | 10000 cycles |
| Number of cables | 1 |
| Overvoltage category | Class I conforming to NF C 20-030 Class I conforming to EN/IEC 61140 |
| Positive opening | With conforming to EN/IEC 60947-5-1 |
| Product end of life instructions | Need no specific recycling operations |
| Product environmental profile | Available Download Product environmental |

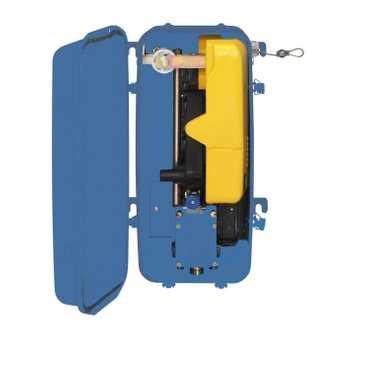

| Product or component type | Simple stop rope pull switch |
| Product weight | 18.75 kg |
| Protective treatment | TC |
| Range of product | Preventa XY2 |
| REACh | Reference not containing SVHC above the threshold |
| Reset | From inside enclosure |
| Resistance across terminals | <= 25 MOhm conforming to NF C 93-050 method A <= 25 MOhm conforming to EN/IEC 60255-7 category 3 |
| RoHS | Will not be Compliant |
| Short circuit protection | 10 A by gG cartridge fuse conforming to EN/IEC 60269 |
| Standards | EN/IEC 60947-5-1 |
| Sustainable offer status | Not Green Premium product |
| Terminals description ISO n°1 | (11-12)NC (13-14)NO |
| Tightening torque | 0.8...1.2 N.m |
| Trigger cable anchor point | RH side |
| Trigger cable maximum length | 100 m |
