| [Ie] rated operational current | 0.27 A at 250 V DC-13, Q300 conforming to EN/IEC 60947-5-1 appendix A 3 A at 240 V AC-15, A300 conforming to EN/IEC 60947-5-1 appendix A |
| [Ithe] conventional enclosed thermal current | 10 A |
| [Ui] rated insulation voltage | 300 V (degree of pollution: conforming to CSA C22.2 No 14 300 V (degree of pollution: conforming to UL 508 400 V (degree of pollution: 3) conforming to EN/IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to EN/IEC 60947-1 |
| Ambient air temperature for operation | -25...70 °C |
| Ambient air temperature for storage | -40...70 °C |
| Body material | Zamak |
| Cable entry number | 3 tapped entry for Pg 13.5 cable gland |
| Connections - terminals | Screw clamp terminal 1 x 0.5...2 x 1.5 mm² |
| Contacts operation | Snap action |
| Contacts type and composition | 1 NC + 1 NO |
| Cover material | Stainless steel |
| Device short name | XY2CH |
| Distance between cable supports | 5 m |
| Housing colour | Blue |
| IP degree of protection | IP65 for conforming to IEC 60529 |
| Local signalling | Without pilot light |
| Marking | CE |
| Mechanical durability | 800000 cycles |
| Number of cables | 1 |
| Overvoltage category | Class I conforming to NF C 20-030 Class I conforming to EN/IEC 61140 |
| Positive opening | With conforming to EN/IEC 60947-5-1 |
| Product certifications | CCC for |
| Product end of life instructions | Need no specific recycling operations |
| Product environmental profile | Available Download Product environmental |

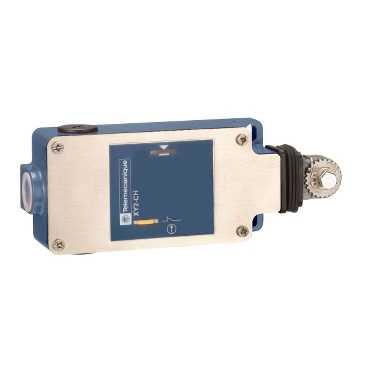

| Product or component type | Simple stop rope pull switch |
| Protective treatment | TC |
| Range of product | Preventa XY2 |
| REACh | Reference not containing SVHC above the threshold |
| Reset | Without |
| Resistance across terminals | <= 25 MOhm conforming to NF C 93-050 method A <= 25 MOhm conforming to EN/IEC 60255-7 category 3 |
| RoHS | Compliant - since 1004 - Schneider Electric declaration of conformity |
| Shock resistance | 50 gn for 11 ms conforming to EN/IEC 60068-2-27 |
| Short circuit protection | 10 A by gG cartridge fuse conforming to EN/IEC 60269 |
| Standards | EN/IEC 60947-5-1 |
| Sustainable offer status | Green Premium product |
| Tightening torque | 0.8...1.2 N.m |
| Trigger cable anchor point | RH or LH side |
| Trigger cable maximum length | 15 m |
| Vibration resistance | 10 gn (f = 10...150 Hz) conforming to EN/IEC 60068-2-6 |
