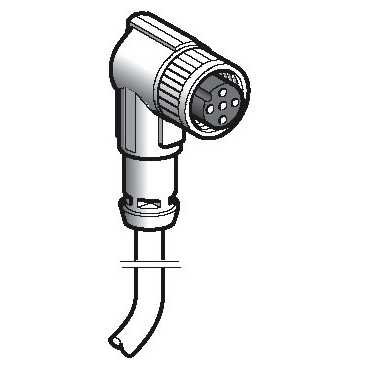

Hun, DIN 43650 A, 4-pin, vinklet konnektor - kabel gland Pg 11
| Varenr: | XZCC43FCP40B |
| El nr: | 7524681238 |
| EAN13 nr: | 3389110833959 |
| Pakning: | 1stk |
 |
| [In] rated current | 16 A |
| [Ue] rated operational voltage | 250 V AC |
| Accessory / separate part category | Cabling accessories |
| Accessory / separate part type | Connector |
| Ambient air temperature for operation | -40...125 °C |
| Cable connection | Screw terminal / wire size <= 1.5 mm² / clamping capacity 7...10 mm |
| Cable connector fixing | Locking screw |
| Cable gland type | Pg 11 |
| Contact resistance | <= 4000 µOhm |
| Electrical connection | Elbowed female connector DIN 43650 A, 4 pins |
| Enclosure material | Plastic |
| Insulating resistance | > 0.1 G? |
| IP degree of protection | IP65 |
| Product weight | 0.035 kg |
| RoHS (date code: YYWW) | Compliant - since 0726 - Schneider Electric declaration of conformity |
| Status LED | Without |
| Sustainable offer status | Not Green Premium product |
Yderliger oplysninger:
Se venligst SE katalog©Schneider Electric A/S 2025
