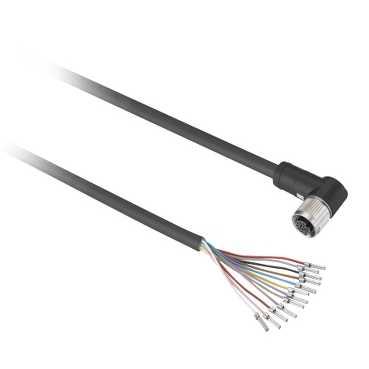

Formonteret konnektor XZ - vinklet hun - M12 - 12 pins - kabel PUR 5 meter
| Varenr: | XZCPB45P14L5 |
| El nr: | 7524687782 |
| EAN13 nr: | 3389119086059 |
| Pakning: | 1stk |
 |
| [In] rated current | 1.5 A |
| [Ue] rated operational voltage | 30 V DC |
| Accessory / separate part category | Cabling accessory |
| Accessory / separate part type | Pre-wired connectors |
| Ambient air temperature for operation | -5...80 °C (flexing) -40...80 °C (static) |
| Ambient air temperature for storage | -40...80 °C |
| Cable composition | 12 x 0.14 mm² |
| Cable connector fixing | Screw-on |
| Cable length | 5 m |
| Cable outer diameter | 8.5 mm |
| Collar material | Metal |
| Contact resistance | <= 5000 µOhm |
| Electrical connection | Elbowed female connector M12, 12 pins |
| Insulating resistance | >= 100 MOhm |
| IP degree of protection | IP65 IP68 IP69K |
| Product weight | 0.46 kg |
| Series name | Application |
| Status LED | Without |
| Wire insulation material | PUR |
Yderliger oplysninger:
Se venligst SE katalog©Schneider Electric A/S 2025
