| [Ui] rated insulation voltage | 300 V conforming to CSA C22.2 No 14 500 V degree of pollution 3 conforming to IEC 60947-1 300 V conforming to UL 508 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 6 kV conforming to IEC 60664 |
| Ambient air temperature for operation | -25...70 °C |
| Ambient air temperature for storage | -40...70 °C |
| Associated connection component | ZCDEF12 ZCDEG11 ZCDEG13 ZCDEN12 ZCDEP16 ZCDEP20 |
| Associated head | ZCE01 ZCE02 ZCE05 ZCE06 ZCE07 ZCE08 ZCE09 ZCE10 ZCE11 ZCE13 ZCE14 ZCE21 ZCE24 ZCE27 ZCE28 ZCE29 ZCE62 ZCE63 ZCE64 ZCE65 ZCE66 ZCE67 ZCEH0 ZCEH2 |
| Body material | Zamak |
| Body type | Fixed |
| Contact code designation | R300, DC-13 (Ue = 250 V, Ie = 0.1 A) conforming to EN/IEC 60947-5-1 appendix A B300, AC-15 (Ue = 240 V, Ie = 1.5 A) conforming to EN/IEC 60947-5-1 appendix A |
| Contacts insulation form | Zb |
| Contacts material | Gold plated contacts |
| Contacts operation | Snap action |
| Contacts type and composition | 1 NC + 1 NO |
| Depth | 30 mm |
| Design | Compact |
| Device short name | ZCP |
| Electrical connection | Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm² |
| Electrical durability | 5000000 cycles, DC-13 48 V, 7 W, operating rate: < 60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 5000000 cycles, DC-13 24 V, 10 W, operating rate: < 60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 5000000 cycles, DC |
| Height | 65 mm |
| Minimum actuation speed | 0.01 m/s |
| Number of poles | 2 |
| Positive opening | With |
| Product compatibility | XCKP |
| Product end of life instructions | Available Download End of life manual |
| Product environmental profile | Available Download Product environmental |

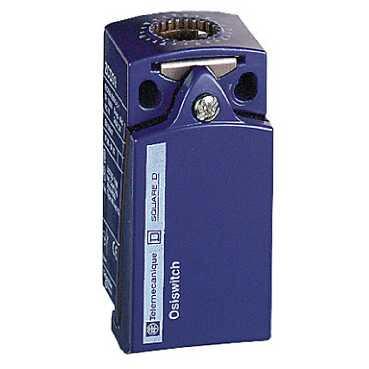

| Product or component type | Limit switch body |
| Range of product | OsiSense XC |
| REACh | Reference not containing SVHC above the threshold |
| RoHS (date code: YYWW) | Will not be Compliant |
| Series name | Standard compact |
| Short circuit protection | 10 A by gG cartridge fuse |
| Sustainable offer status | Not Green Premium product |
| Width | 31 mm |
